Color Sine Pattern Generator

Name: COLORSIN

The ColorSin Pattern Generator is a simple generator that varies the intensity of a single color over time. It is useful for creating a simple, smooth, and continuous fades. Currently, the color and fade rate is shared between every pixel. This means that all pixels will be the same color at the same time, and they’ll all fade together.

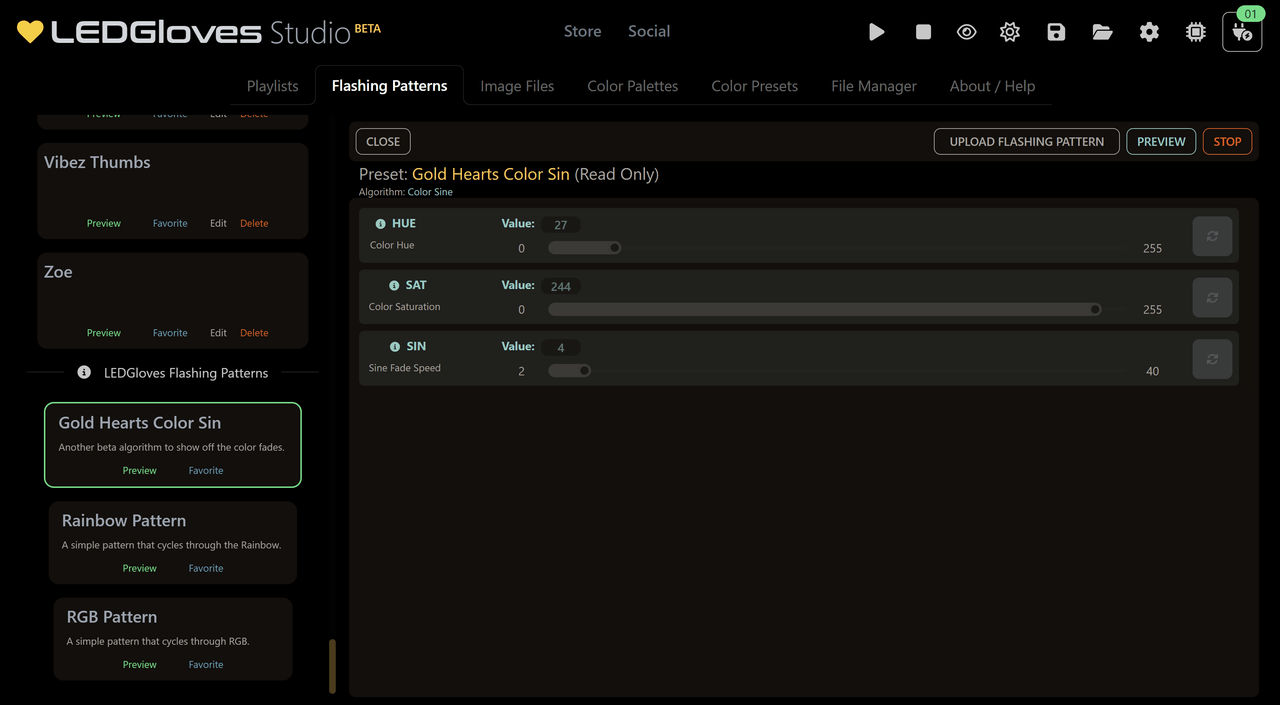

Example Preset with Editor:

COLORSIN,
	HUE=27, ; 🧡
	SAT=244,
	SIN=4,

---

Parameters List

Parameter	Type	Description	Min	Max	Default
HUE	Number	The hue of the color to fade.	0	255	0
SAT	Number	The saturation of the color.	0	255	200
SIN	Number	The speed of the sine fade.	2	40	2

---

COLORSIN: HUE

Parameter Name: HUE

Type	Min	Max	Default	Description
Number	0	255	0	The hue of the color to fade.

HUE is the hue of the color to fade. It is a number between 0 and 255. The hues start with red at 0, and go through the rainbow to magenta, the back to red again at 255. To get white, this param can be left as the default, and SAT (saturation) can be set to 0.

COLORSIN: SAT

Parameter Name: SAT

Type	Min	Max	Default	Description
Number	0	255	200	The saturation of the color.

SAT is the saturation of the color. It is a number between 0 and 255. The saturation is how much color is in the color. 0 is white, and 255 is the most saturated color. Values below 100 are mostly white, and values between 170 and 200 are a nice pastel color.

COLORSIN: SIN

Parameter Name: SIN

Type	Min	Max	Default	Description
Number	2	40	2	The speed of the sine fade.

SIN is the speed of the sine fade. It is a number between 2 and 40. The higher the number, the faster the fade. The default value of 2 is a nice slow fade. A value of 40 is a very fast fade.

---

Preset File Examples

Here are some examples for manually creating a Color Sine Preset text file. You can also use the LEDGloves Studio Flashing Pattern Generator to create and save presets automatically. These examples could be saved to a text file like patterns/<preset_name>.txt.

Example 1 - Basic Example

This example results in a slow, smooth fade from black to a pastel orange/red.

COLORSIN,
  HUE=44,
  SAT=235,
  SIN=3,

Example 2 - Using Defaults

This Example is a fast, deep red fade. Here, we use the default HUE value of 0, which is red.

COLORSIN, SAT=255, SIN=28,

Example 3 - Gold Hearts Color Sin Preset

This is a preset that was created for the ”Gold Hearts” pattern. It is a slow, smooth fade from black to LEDGloves gold.

COLORSIN,
	SIN=4,
	HUE=27,
	SAT=244,
